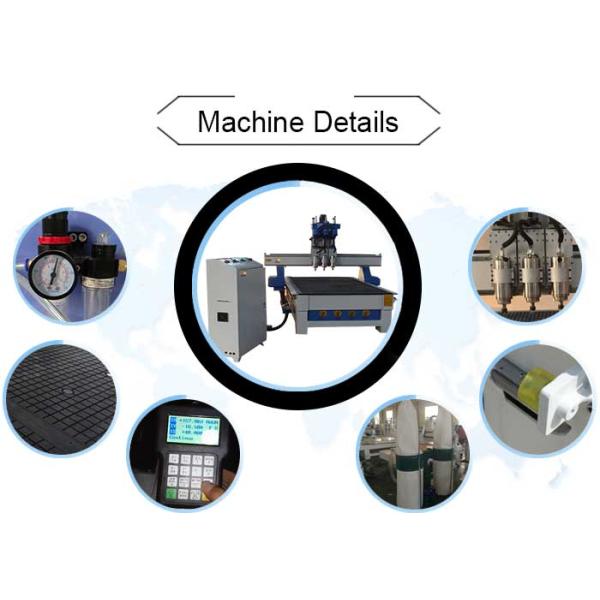

Three Spindles CNC 3D Router Machine For Carving Three Pictures At The Same Time
This type cnc engraving machine has three spindles, all the spindles could work together or just one could work alone.
Advantage:
1. Linear rails on X, Y (Y axis is controlled by two motors)and Z (ballscrew transmission)axes are used to guarantee high accuracy and stable performance, and support heavy weight. The square sliding blocks of this cnc stone carving machine are of good dust-proof effect. Automatic oil feeding and lubricating system makes the regular maintenance very easy.
2. Superior high power water-cooling spindle of this kind cnc stone carving machine could keep working at low noise level, safeguarding stability for long-time operation.
3. Break-point memory enable the cnc stone cutting & engraving machine to continue the unfinished work after a work shift or accidents, such as tool breaking.
4. Compatible with many CAD/CAM software, such as Type3, Artcam, Castmate, Wentai, etc.
| Model | DHRM-1325-3H |
| Table Size | 1300 mm * 2500 mm * 200 mm |
| Spindle | 5.5 KW air cooling spindle * 3 |
| Inverter | 7.5 KW Fuling Inverter * 3 |
| Control System | Richauto Control System |
| Rail | Hiwin 20mm square rail |
| Body Structure | Heavy duty body |
| X,Y Axis Transmission | Gear And Rack Transmission |
| Z Axis Transmission | Ball Screw Transmission |
| Motor And Driver | Leadshine stepper motor and drive |
| Table Type | Vacuum Table with 8 Zones |
| Others | USB interface, Filter, tool sensor, etc |
Leadshine stepper Motor and Driver
Leadshine stepper Moter and Driver is widely adopted in Chinese CNC router, It’s cheaper and high accuracy. It won’t lose step in working, speed performance increased about 30%, improve the equipment speed heavily. Motor heat fell down 30%,prolong the life time of the motor. Vibration phenomenon significantly reduced,motor run more smoothly. Adopted the current control system technology,save power consumption.
Richauto control system
Richauto Control System is easily operate and learned, especially for the freshman. It could read draw path in USB flash disk. However you can’t the the whole part of the draw in handle wheel.
Demostic spindle have water cooling and air cooling etc two cooling types. Low price with high precision and effecienty. Four bearing in our spindle motor could make sure same precision for over 3 years. Suitable for basic type and Ball Screw type cnc router. It has ATC type too, could help you to carving complex pictures.
